How-to: repair Mercedes W211 original EIS rolling code with CGDI Prog MB Benz key programmer.
Rolling code :
A rolling code (or sometimes called a hopping code) is used in keyless entry systems to prevent replay attacks, where an eavesdropper records the transmission and replays it at a later time to cause the receiver to ‘unlock’. Such systems are typical in garage door openers and keyless car entry systems.
Why need repair W211 rolling code?
Most of keys are too fast to be inserted and removed, the track code does not roll, resulting in code rolling, so the key and the EIS cannot be matched properly. CGDI MB has the ability to repair Mercedes rolling code.
Follow main steps below:
1. First you need a key password
2. Calculate the track code of the key
3. Read the EIS, fill in password and save data
4. Calculate the erase password and erase it
5. Load the EIS data with the password
6. Click “Allow modification of data”
7. Change the track code of the key position to the track
code of the key.
8. Write data
9. Learn key
2. Calculate the track code of the key
3. Read the EIS, fill in password and save data
4. Calculate the erase password and erase it
5. Load the EIS data with the password
6. Click “Allow modification of data”
7. Change the track code of the key position to the track
code of the key.
8. Write data
9. Learn key
Step-by-step procedure:
1. Read key password. If there is no key,you can calculate the password by doing all keys lost

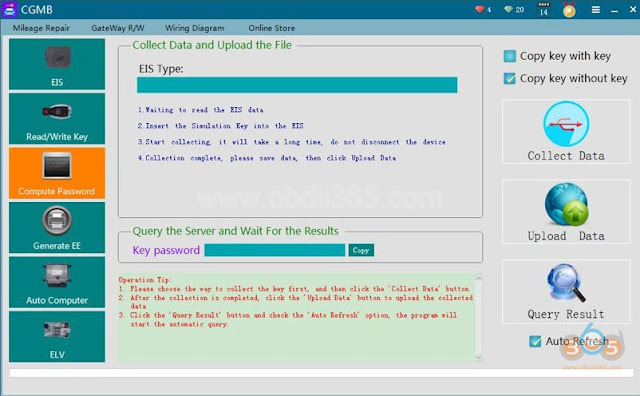

Calculate password
2.Calculate the track code of the key. Press Read Key/Chip and read current key information
Fill in the password
Click to get the track code
Confirm that the key has been inserted into the CGDI MB and check that the key password is correct.
The track code calculated by the wrong password is invalid.
Calculate key track code success
3.Read EIS, enter password and save data
4.Calculate the erase password ad erase the EIS.
Press Wipe the EIS to erase EIS
Insert the CGDI Prog IR adapter into the EIS within 30 seconds.
Erase EIS success
Read EIS and check current status
The EIS is erased
5. Press Load EIS data to load saved data previously with key password
View the key position (key position is 1) and copy the track code
Click on Allow data modification
7.Modify the track code of the key position to the track code of the key
8.Write the EIS data
Recommend to write the VIN first, then write the EIS data
Insert the IR adapter into the EIS within 30 seconds
Write EIS data successfully
Read EIS data to check current key status
Insert the original car key into EIS to learn key, the EIS can be activated
Insert the key, wait 1-5 seconds, the ELV responds, the EIS is activated and the key learnt successfully
Read EIS data again
W211 EIS original rolling code is repaired by CGDI MB successfully.
Done.
