CGPro Unlock BMW PCF7953 Remote Key

Hundreds of car remote keys can be unlocked by CGPro 9S12 programmer. Here is an example of BMW F series CAS4 remote.

CGDI BMW detected this used remote as Unlocked.

Remove key shell and battery, check frequency 434MHz and type HUF5767, take a screenshot of this info.

Check chip type: 28PIN, PCF7953

Run CGPro software, select Brand-Key Renew-BMW F series- Huf–F series 434MHz

*Select Huf-F series 434 Mhz if cannot find PCF7953 434MHz. This has been verified working.



CG Pro will show you the wiring diagram

1-VBAT
12-VSS
6-P10 MSCL
7-P11 MSDA

*Follow wiring diagram above if it is the same as the image above, otherwise, solder point using a multimeter.

Connect key board with CGPro via eeprom adapter

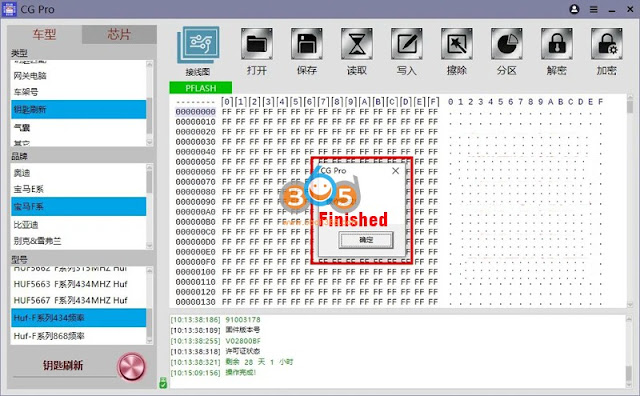

check connection again, in CG-Pro software, press Renew icon, cgpro starts unlocking remote until finished

Disconnect wiring, reinstall the battery and key shell.

Check remote status, it is unlocked.

Done.
